Project Details

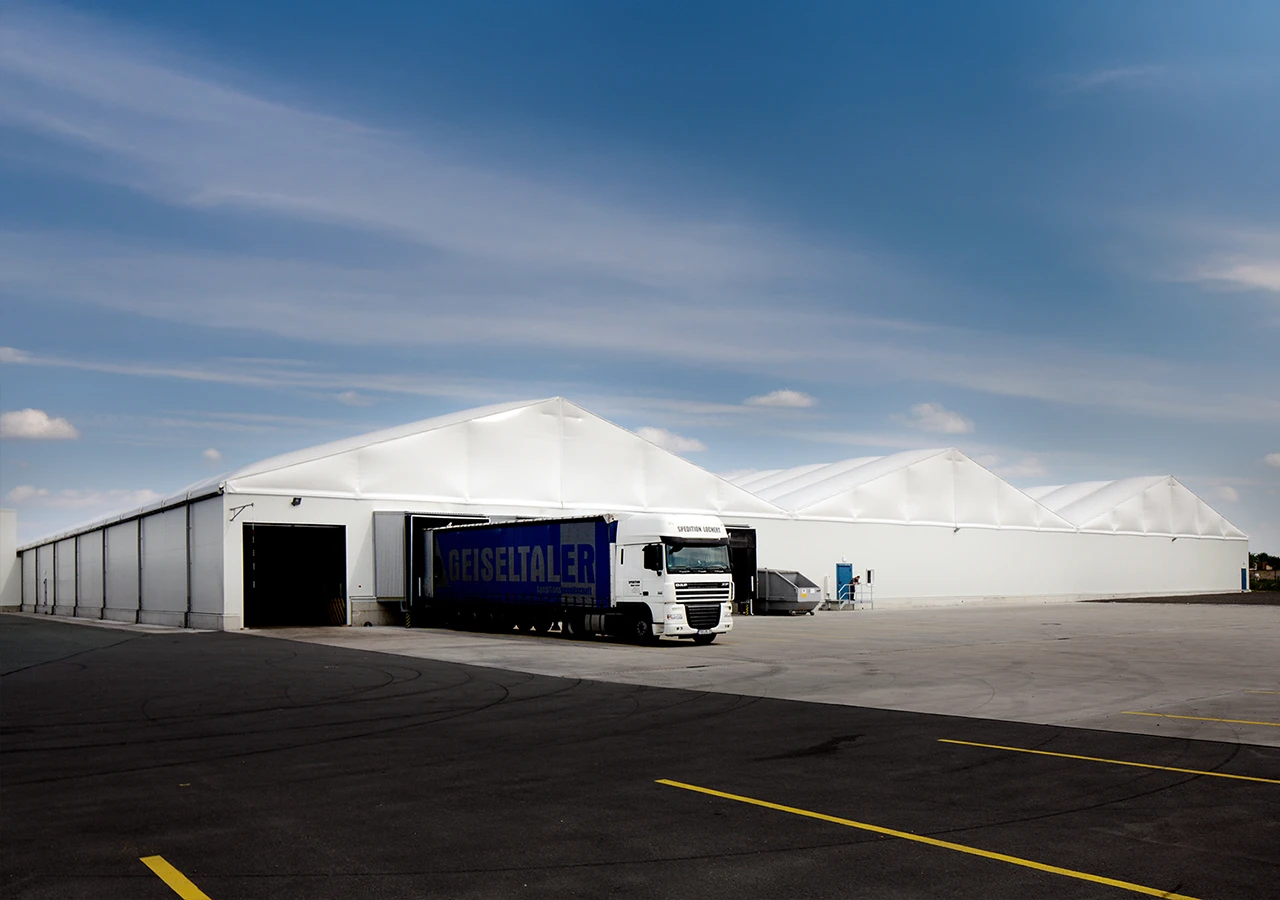

Constructed at the Franken Brunnen, Germany facility, this project comprises three adjacent H-Line series tent systems measuring 30x90x5.2 meters, designed to create a comprehensive industrial warehouse. The structure is equipped with operational features such as loading ramps and optimized for high-volume product management. Following installation, the structure was extended by an additional 30 meters to accommodate growing needs, demonstrating the project's flexible expansion capacity.
The large-volume structure required rapid erection, configuration for heavy logistics traffic, and future expansion. Thanks to RÖDER's advanced engineering infrastructure, the structure was designed to maximize load-bearing capacity by leveraging the flexibility of the H-Line system. Loading ramps were integrated. Furthermore, thanks to the modular system, the structure could be seamlessly extended by an additional 30 meters, ensuring true scalability.

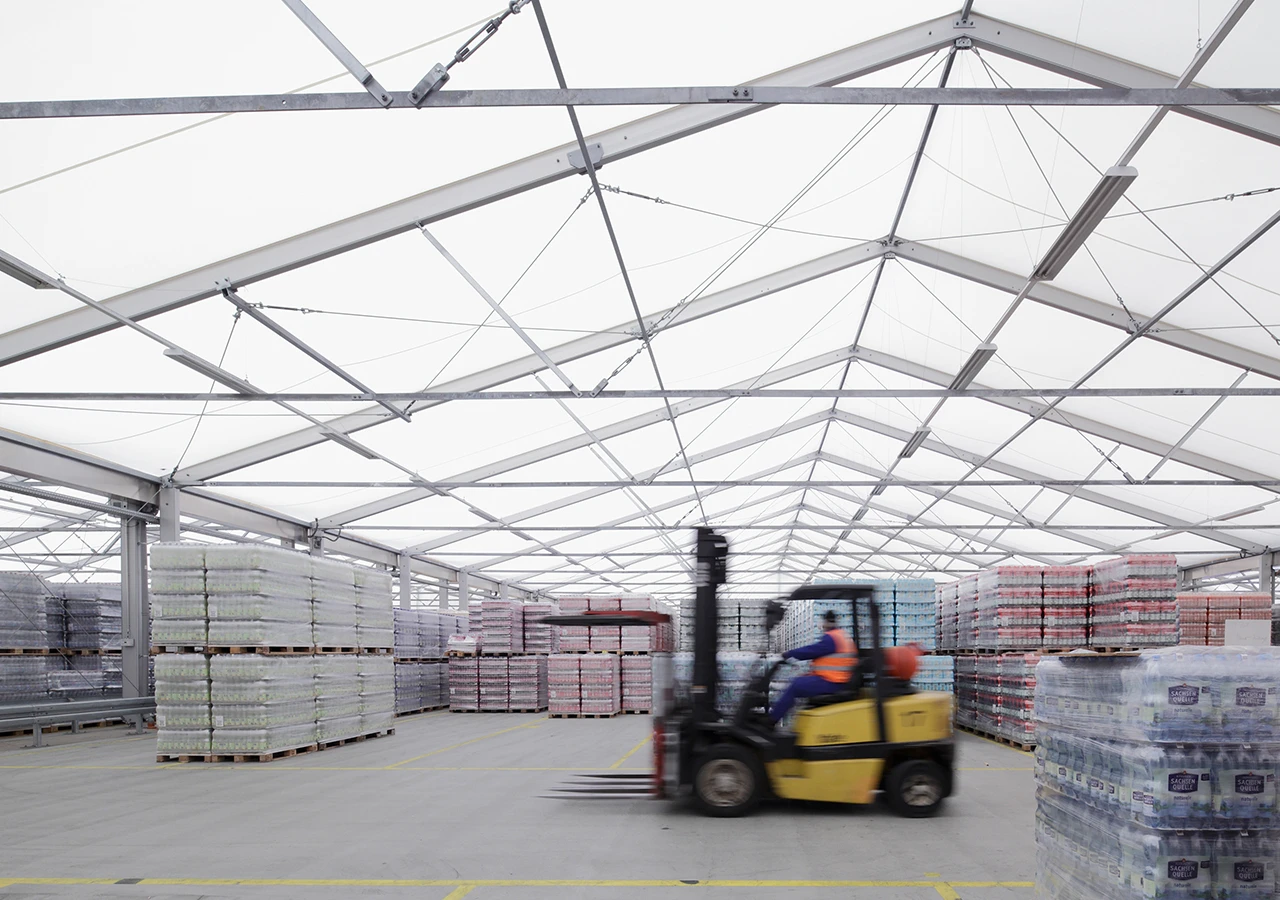

Covering a total area of 8,100 m², the tent is fully integrated into Franken Brunnen's production and logistics processes, both in terms of its size and operational solutions. Loading ramps streamline on-site flow, and the expandable modular system provides an infrastructure ready for future growth.
Technical Information and Statistics
Project Area
8100 m²
Installation Time
6 Weeks
Used System
H-Line Series Tent System
Structure Length
Initially planned as 90 meters, the structure was extended by an additional 30 meters to meet the increasing demand, bringing the total height to 120 meters.
The tent's roof system is designed with a specially developed Thermo-Roof system to balance thermal insulation.
A suitable floor has been designed for loading ramps.
The tent is designed to withstand wind loads of 130 km/h and snow loads of 75 kg/m².
Franken Brunnen officials stated that with this project, they not only have a high-quality storage facility, but also a flexible and durable infrastructure that can grow over time and meet operational needs. RÖDER's engineering support and project management capabilities made a difference throughout the entire process.
