ECONOMIC SOLUTION OFFERING FLEXIBLE ROOF AND FACADE OPTIONS

M-LINE INDUSTRIAL TENT SERIES

WIDE RANGE OF USES
CONVERSION TO PERMANENT STRUCTURE
HARDWARE OPTIONS
WIDTH UP TO 30 METERS

ECONOMIC SOLUTION OFFERING FLEXIBLE ROOF AND FACADE OPTIONS

M-Line Industrial Tent Series are economical tent systems that offer flexible roof and facade options, designed for a wide range of needs such as production facilities, factories and storage areas. It can be re-installed by moving to a different area without any material loss. M-Line Industrial Tent Series offers clean span (columnless) structures starting from 10 meters wide. It can be extended unlimitedly with axle distances of 5 meters.

While the construction of M-Line Industrial Tent Series consist of anodized aluminum profiles, PVC coated tarpaulin, trapezoidal sheet metal or ISO panel can be preferred for facade cladding. In door preferences, tarpaulin sliding gate, steel sliding gate, roller shutter gate, personnel door, sectional gate, loading dock etc. can be applied.

M-LINE INDUSTRIAL TENT SERIES

M-LINE INDUSTRIAL TENT SERIES Models

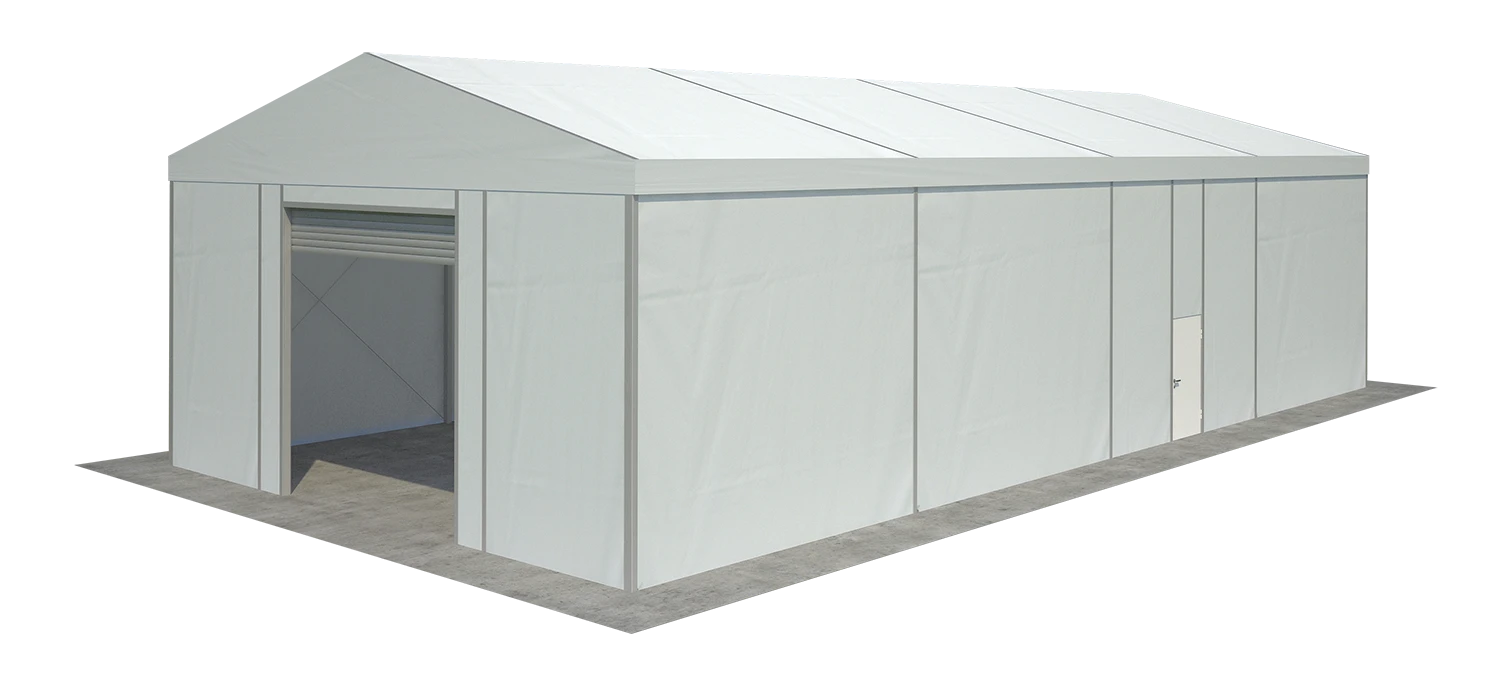

M-LINE 10m - 15m

M-LINE 10m - 15m

Span10 m / 12.5 m / 15 m
Side Height3.7 m / 4.6 m / 5.2 m
Roof Pitch15°
Bay Distance5 m
Maximum LengthNo Limit
Max. Wind Load102 km/h
Max. Snow Load150 kg/m²
Main Profile220 x 100 x 4mm
Facade OptionsStandard: RÖDER No. 1: PVDF Coated Tarpaulin Optional: Trapezoidal Sheet Metal / ISO Panel
Door OptionsTarpaulin Sliding Gate / Steel Sliding Gate / Roller Shutter Gate / Sectional Gate / Personnel Door
Floor OptionsRaised Wooden Floor / Concrete Floor

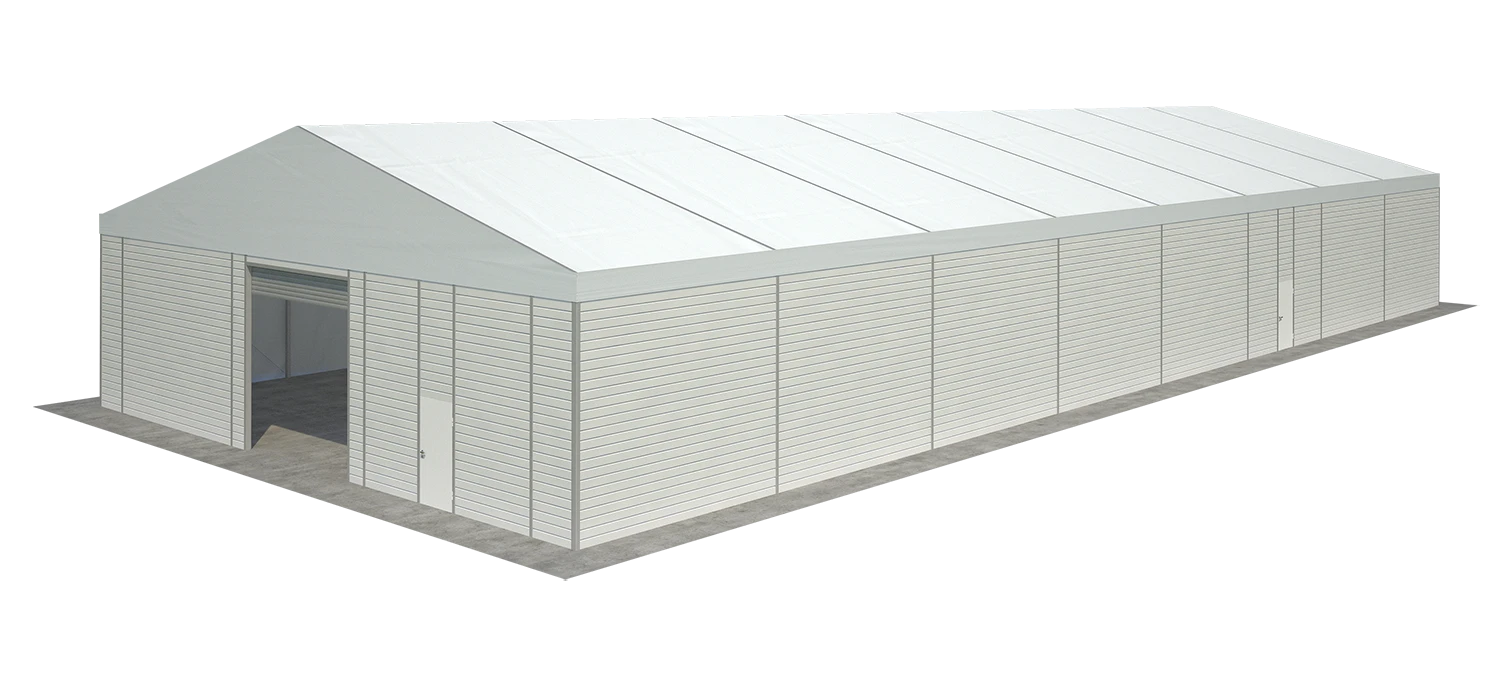

M-LINE 17.5m - 22.5m

M-LINE 17.5m - 22.5m

Span17.5 m / 20 m / 22.5 m
Side Height3.7 m / 4.6 m / 5.2 m
Roof Pitch15°
Bay Distance5 m
Maximum LengthNo Limit
Max. Wind Load102 km/h
Max. Snow Load150 kg/m²
Main Profile220 x 100 x 4mm
Facade OptionsStandard: RÖDER No. 1: PVDF Coated Tarpaulin Optional: Trapezoidal Sheet Metal / ISO Panel
Door OptionsTarpaulin Sliding Gate / Steel Sliding Gate / Roller Shutter Gate / Sectional Gate / Personnel Door
Floor OptionsRaised Wooden Floor / Concrete Floor

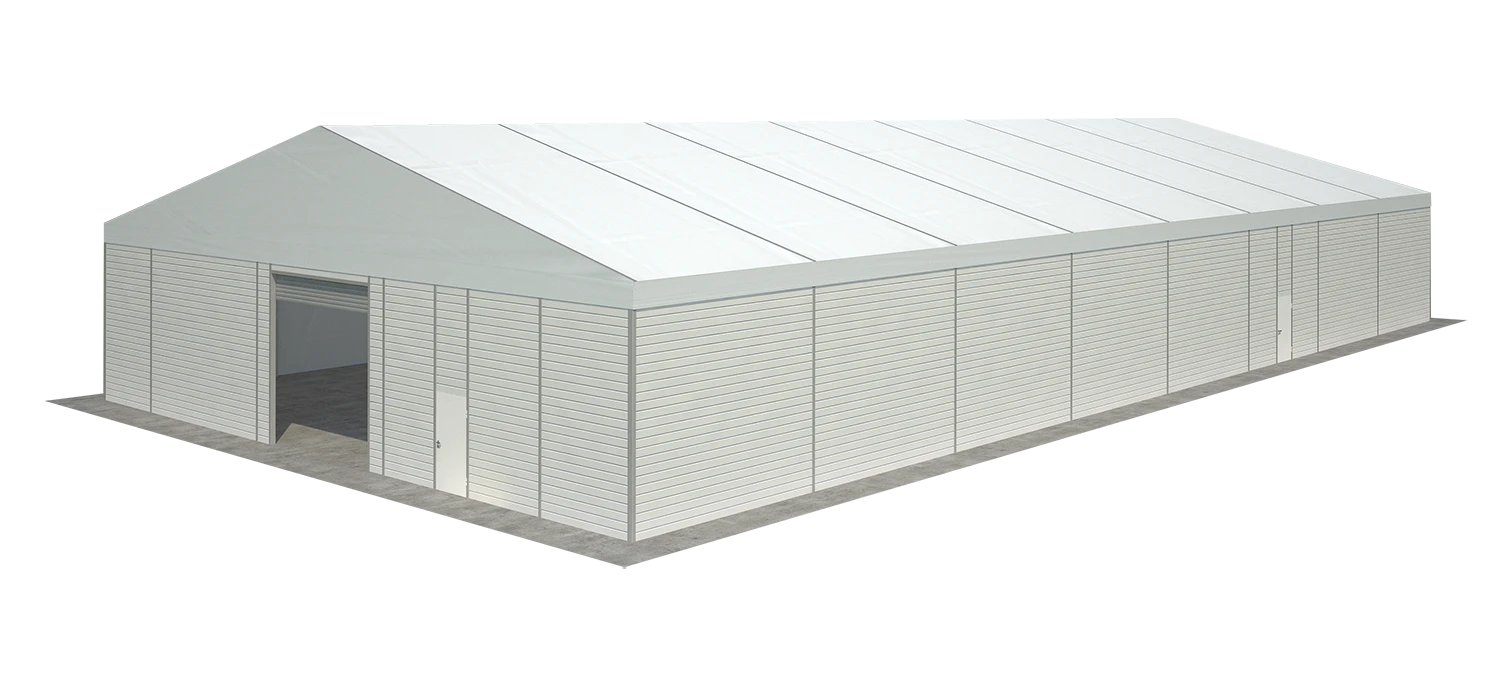

M-LINE 25m - 30m

M-LINE 25m - 30m

Span25 m / 27.5 m / 30 m
Side Height3.7 m / 4.6 m / 5.2 m
Roof Pitch15°
Bay Distance5 m
Maximum LengthNo Limit
Max. Wind Load102 km/h
Max. Snow Load25m = 131 kg/m²
27.5m - 30m = 85 kg/m²
Main Profile220 x 100 x 4mm
Facade OptionsStandard: RÖDER No. 1: PVDF Coated Tarpaulin Optional: Trapezoidal Sheet Metal / ISO Panel
Door OptionsTarpaulin Sliding Gate / Steel Sliding Gate / Roller Shutter Gate / Sectional Gate / Personnel Door
Floor OptionsRaised Wooden Floor / Concrete Floor
Additional Hardware
Additional Hardware
ISO PANEL
TRAPEZOIDAL SHEET METAL
TRANSLUCENT TARPAULIN
OPAQUE TARPAULIN
COLORED TARPAULIN
TRANSPARENT TARPAULIN
TARPAULIN SLIDING GATE
STEEL SLIDING GATE
ROLLER SHUTTER GATE
PERSONNEL DOOR
EMERGENCY EXIT DOOR
AIR CONDITIONING SYSTEMS
