THE HIGH-TECH SOLUTION FOR SPECIAL REQUIREMENTS

H-LINE INDUSTRIAL TENT SERIES

WIDE RANGE OF SPAN AND LENGTH OPTIONS
HIGH SNOW AND WIND LOAD RESISTANCE
COMPLEX HARDWARE OPTIONS
FIXED ROOF OPTION

THE HIGH-TECH SOLUTION FOR SPECIAL REQUIREMENTS

H-Line Industrial Tent Series are industrial type permanent tent systems that offer complex equipment options, designed for a wide range of needs such as production facilities, factories, storage areas. It can be moved to a different area and re-installed without any material loss. The H-Line Industrial Tent Series offers clear span (columnless) structures starting from 10 meters wide. It can be extended unlimitedly with axle distances of 5 meters.

While the construction of H-Line Industrial Tent Series consist of anodized aluminum profiles, PVC coated tarpaulin, trapezoidal sheet metal or ISO panel can be preferred for facade cladding. In door preferences, tarpaulin sliding gate, steel sliding gate, roller shutter gate, personnel door, sectional gate, loading dock etc. can be applied.

H-LINE INDUSTRIAL TENT SERIES

H-LINE INDUSTRIAL TENT SERIES Models

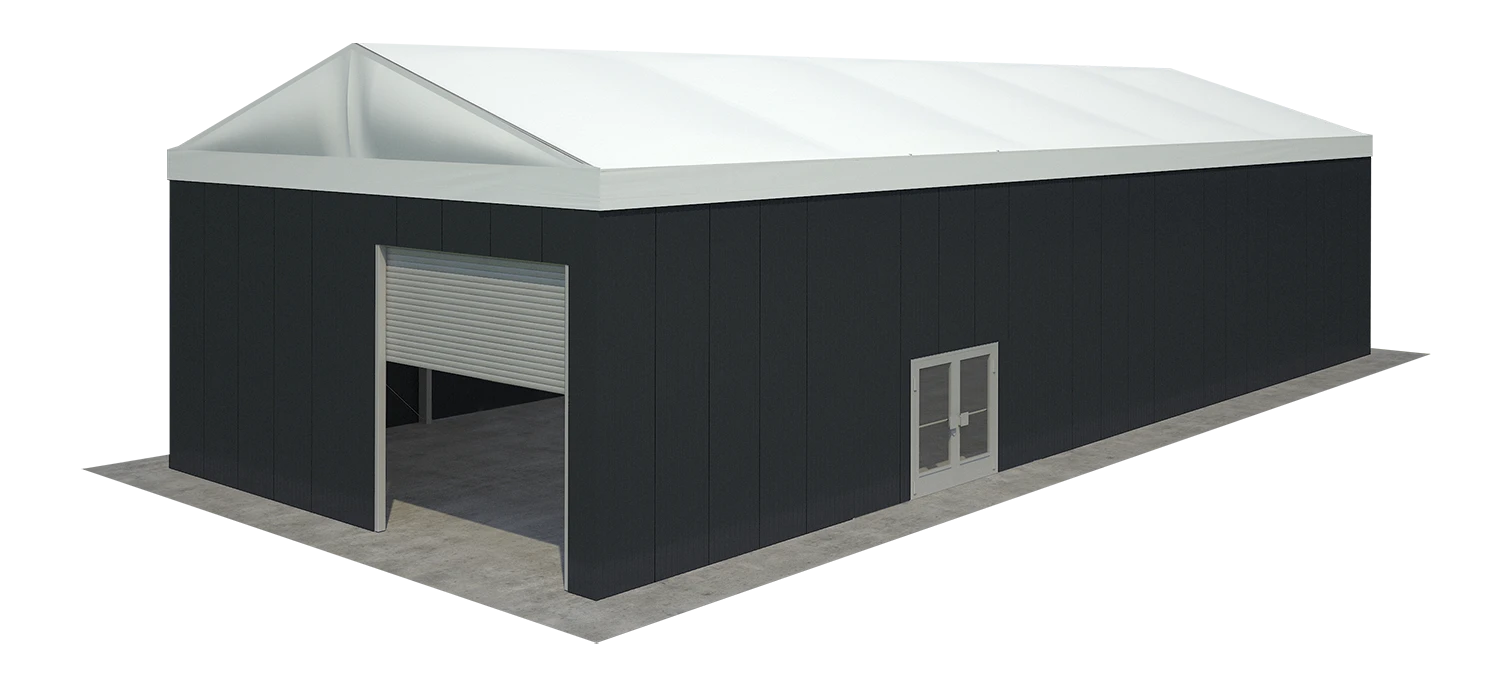

H-LINE 10m - 15m

H-LINE 10m - 15m

Span10 m / 15 m
Side Height4.2 m / 5.2 m / 6.2 m / 8.2 m
Roof Pitch18°
Bay Distance5 m
Maximum LengthNo Limit
Max. Wind Load102 km/h
Max. Snow Load131 kg/m²
Main Profile252 x 122 x 4 mm
Facade OptionsStandard: RÖDER No. 1: PVDF Coated Tarpaulin Optional: Trapezoidal Sheet Metal / ISO Panel
Door OptionsTarpaulin Sliding Gate / Steel Sliding Gate / Roller Shutter Gate / Sectional Gate / Personnel Door
Floor OptionsRaised Wooden Floor / Concrete Floor

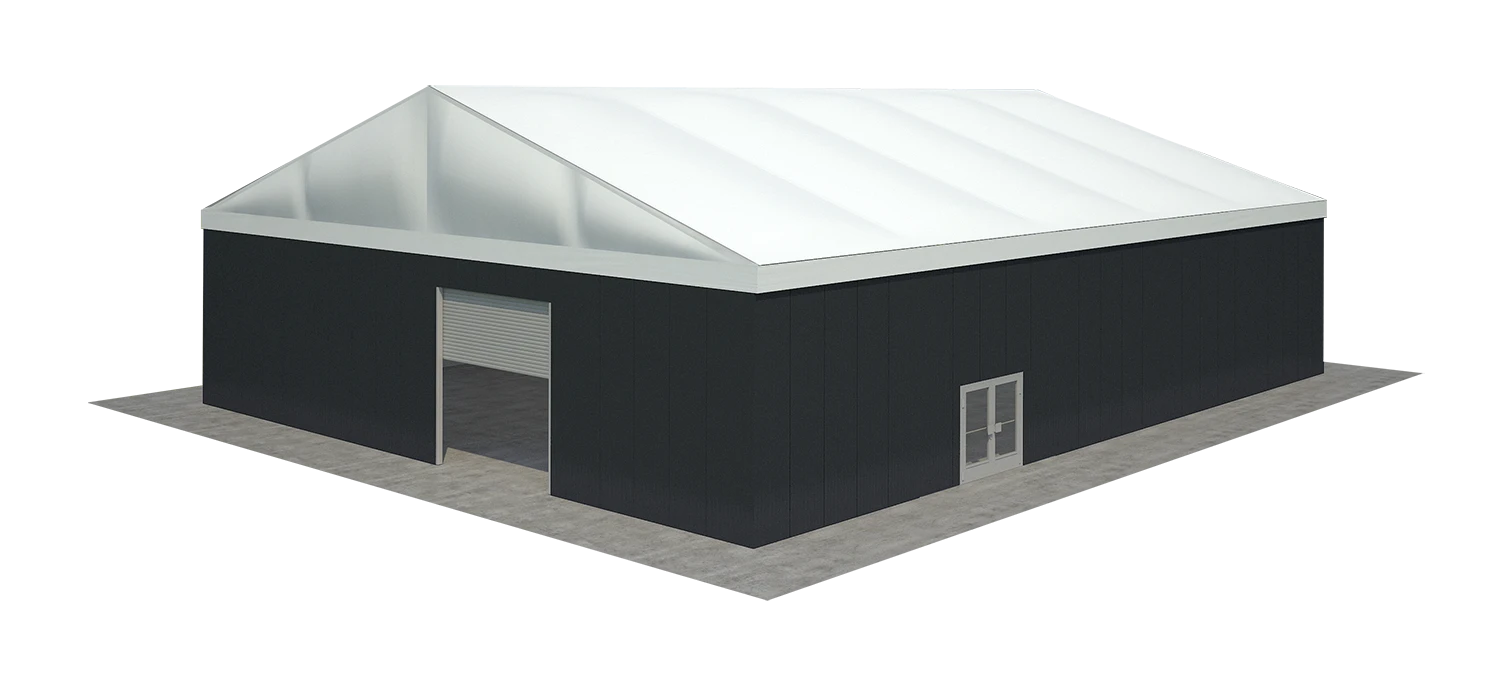

H-LINE 20m - 25m

H-LINE 20m - 25m

Span20 m / 25 m
Side Height4.2 m / 5.2 m / 6.2 m / 8.2 m
Roof Pitch18°
Bay Distance5 m
Maximum LengthNo Limit
Max. Wind Load102 km/h
Max. Snow Load131 kg/m²
Main Profile334 x 122 x 8/4,5 mm
Facade OptionsStandard: RÖDER No. 1: PVDF Coated Tarpaulin Optional: Trapezoidal Sheet Metal / ISO Panel
Door OptionsTarpaulin Sliding Gate / Steel Sliding Gate / Roller Shutter Gate / Sectional Gate / Personnel Door
Floor OptionsRaised Wooden Floor / Concrete Floor

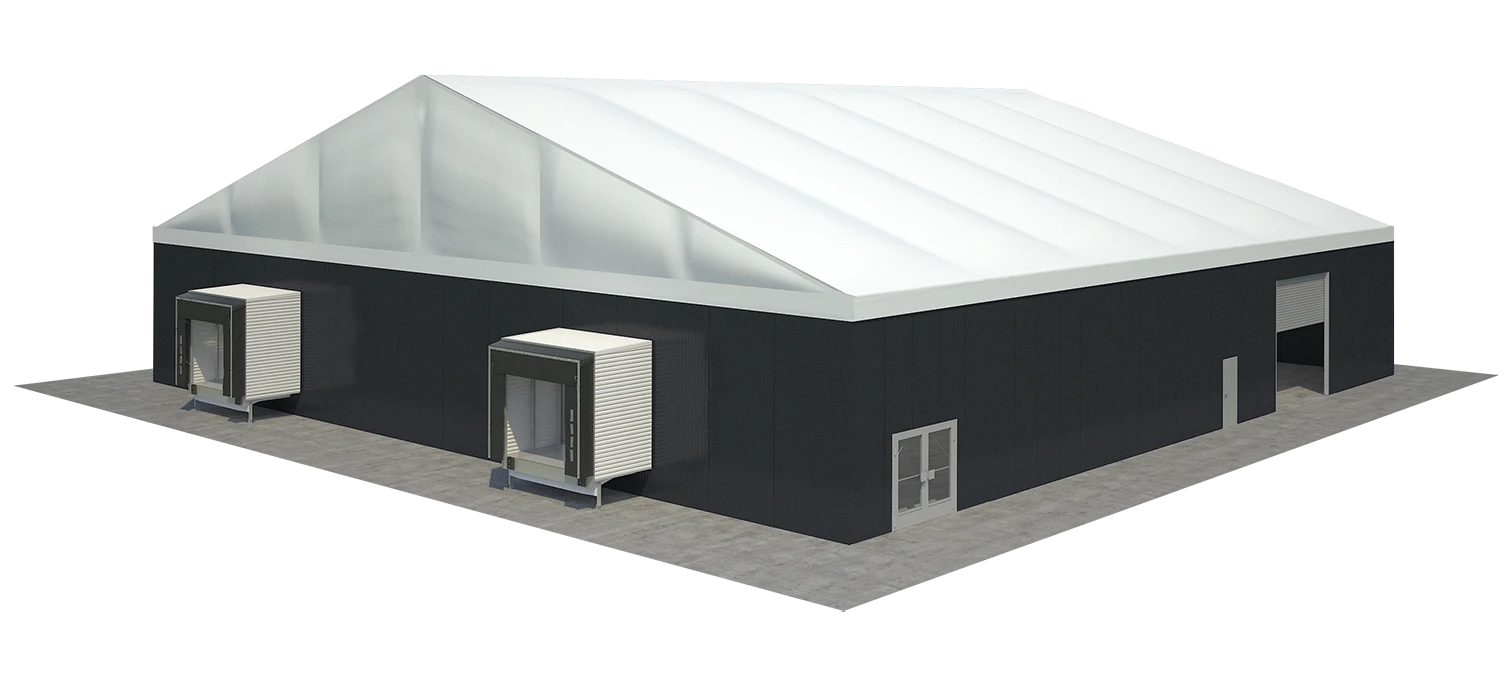

H-LINE 30m - 40m

H-LINE 30m - 40m

Span30 m / 40 m
Side Height4.2 m / 5.2 m / 6.2 m / 8.2 m
Roof Pitch18°
Bay Distance5 m
Maximum LengthNo Limit
Max. Wind Load102 km/h
Max. Snow Load131 kg/m²
Main Profile334 x 122 x 8/4,5 mm
Facade OptionsStandard: RÖDER No. 1: PVDF Coated Tarpaulin Optional: Trapezoidal Sheet Metal / ISO Panel
Door OptionsTarpaulin Sliding Gate / Steel Sliding Gate / Roller Shutter Gate / Sectional Gate / Personnel Door
Floor OptionsRaised Wooden Floor / Concrete Floor
Additional Hardware
Additional Hardware
ISO PANEL
TRAPEZOIDAL SHEET METAL
TRANSLUCENT TARPAULIN
OPAQUE TARPAULIN
COLORED TARPAULIN
TRANSPARENT TARPAULIN
TARPAULIN SLIDING GATE
STEEL SLIDING GATE
ROLLER SHUTTER GATE
PERSONNEL DOOR
EMERGENCY EXIT DOOR
AIR CONDITIONING SYSTEMS
